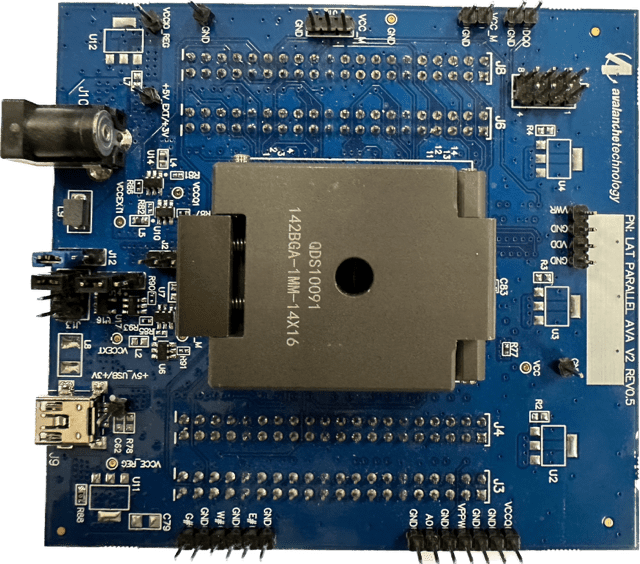

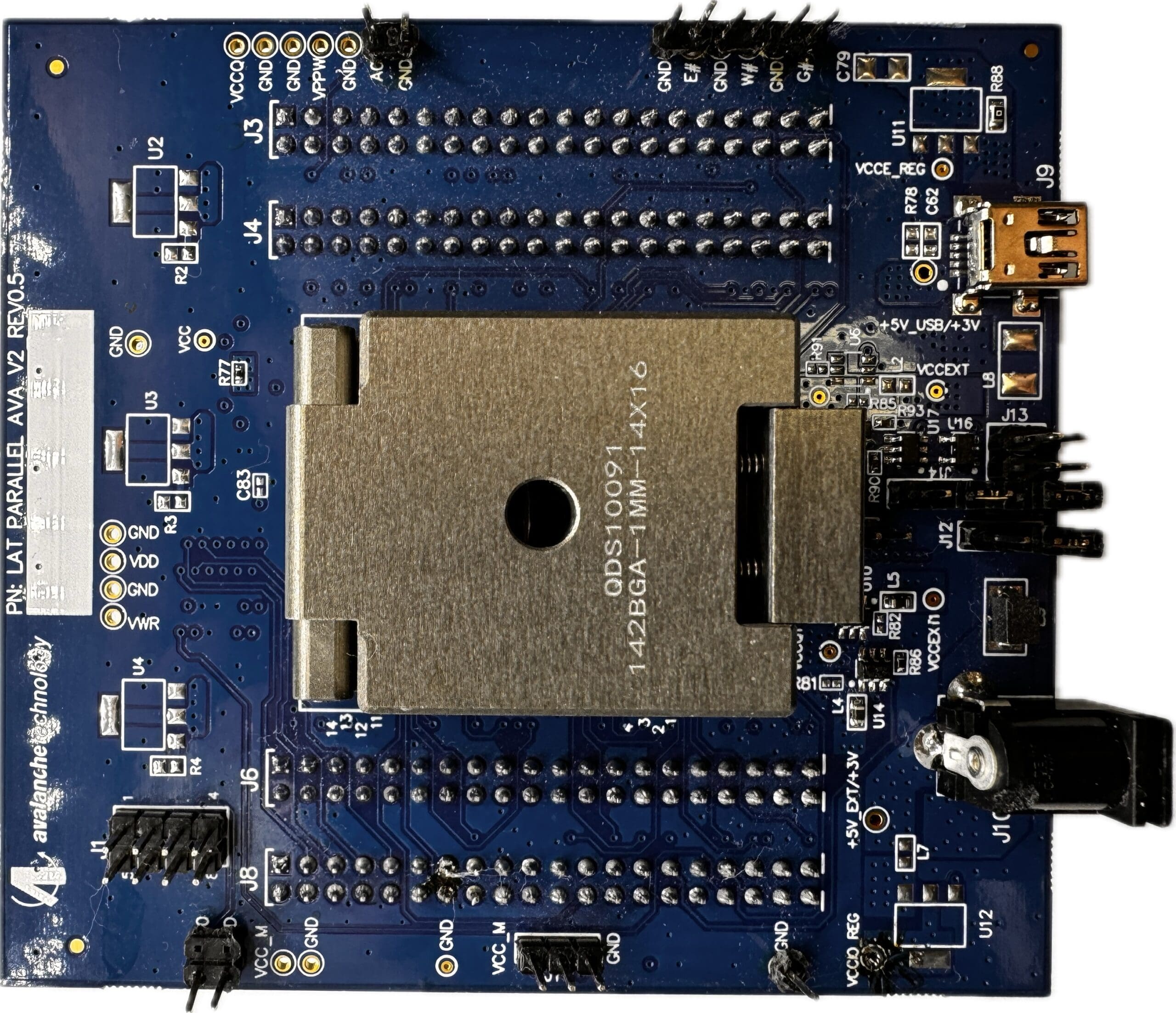

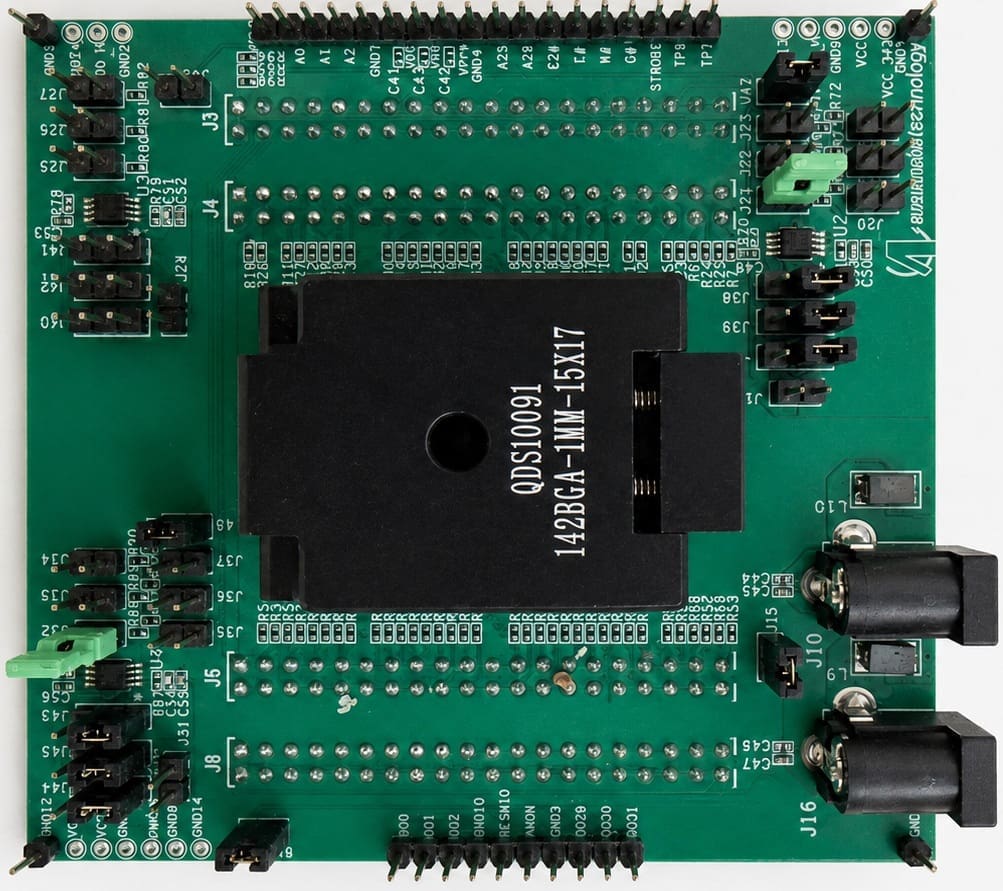

The Avalanche Gen 3 Space Grade Parallel x32 P-SRAM™ evaluation kit enables the users to evaluate Avalanche’s Gen 3 Space Grade Persistent SRAM parallel interface (x32) product using a Lattice LCMXO3LF-6900C FPGA breakout board connected to Avalanche daughterboard via Avalanche proprietary FPGA based Asynchronous SRAM interface.

The Lattice LCMXO3LF-6900C FPGA breakout board communicates with the host PC using a micro-USB cables type B connector. This kit is socketed to enable density flexibility as all Gen 3 Dual QSPI devices are pin compatible. As a result, the P-SRAM devices are ordered separately, and both are available through our authorized Space Grade distributors.

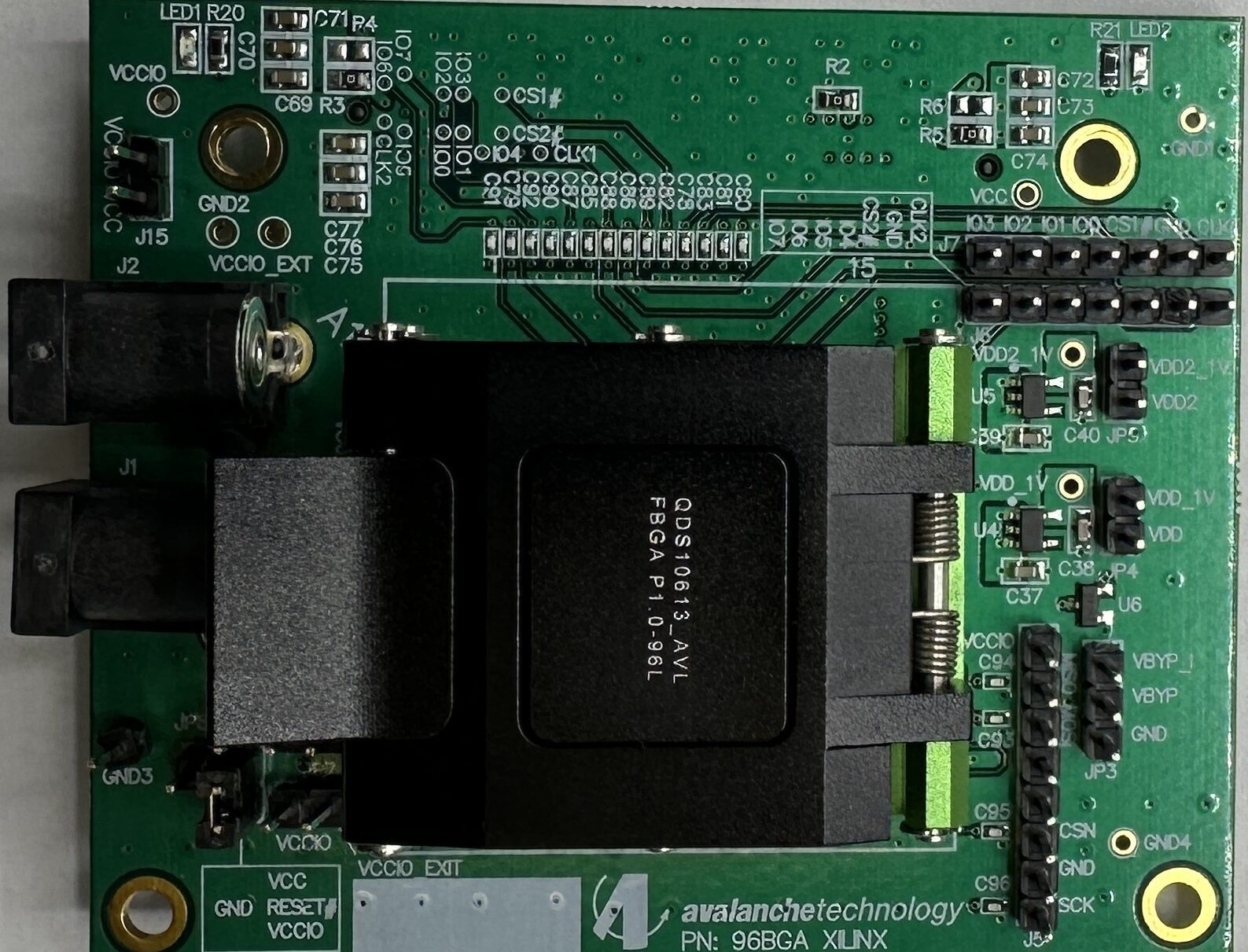

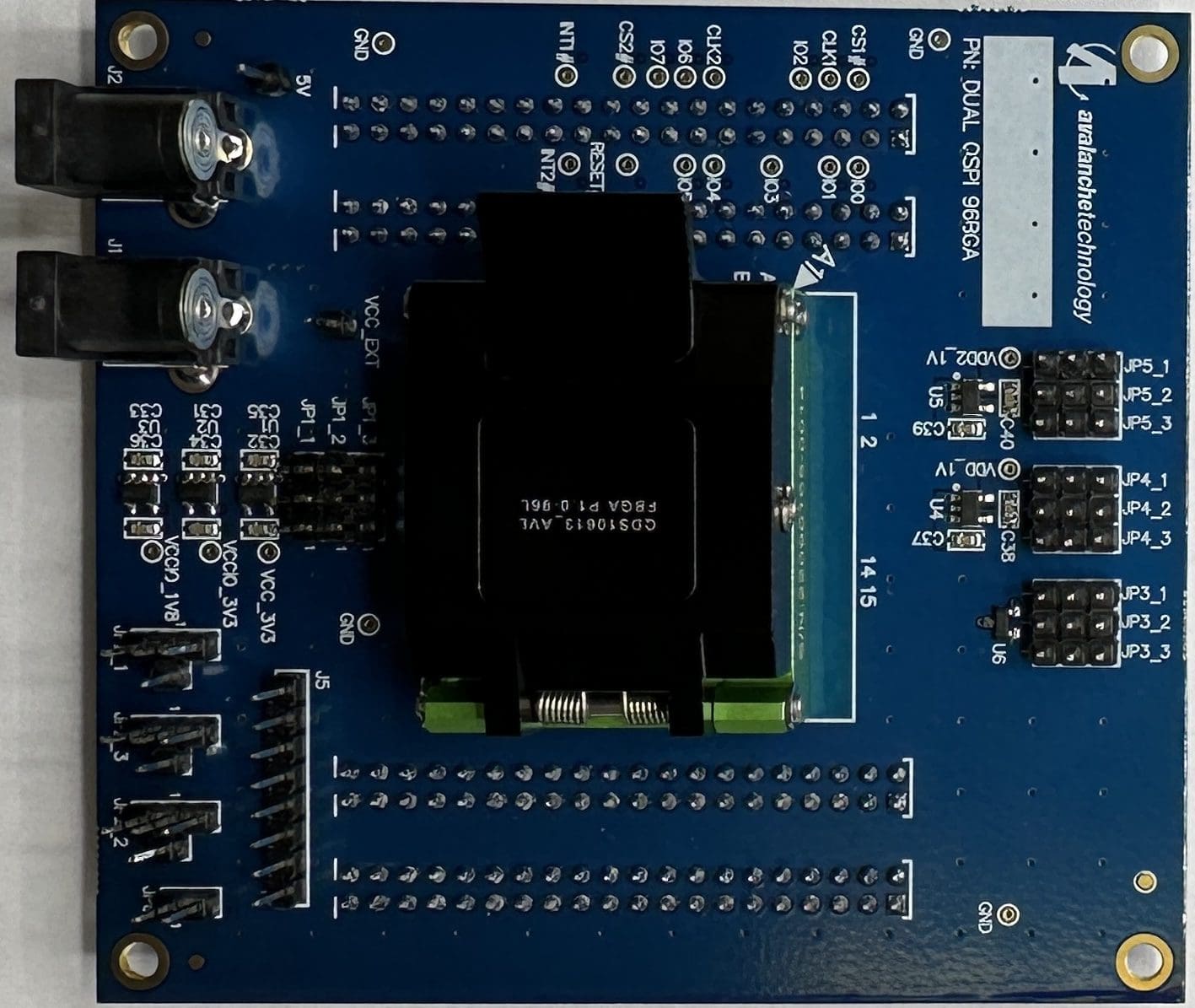

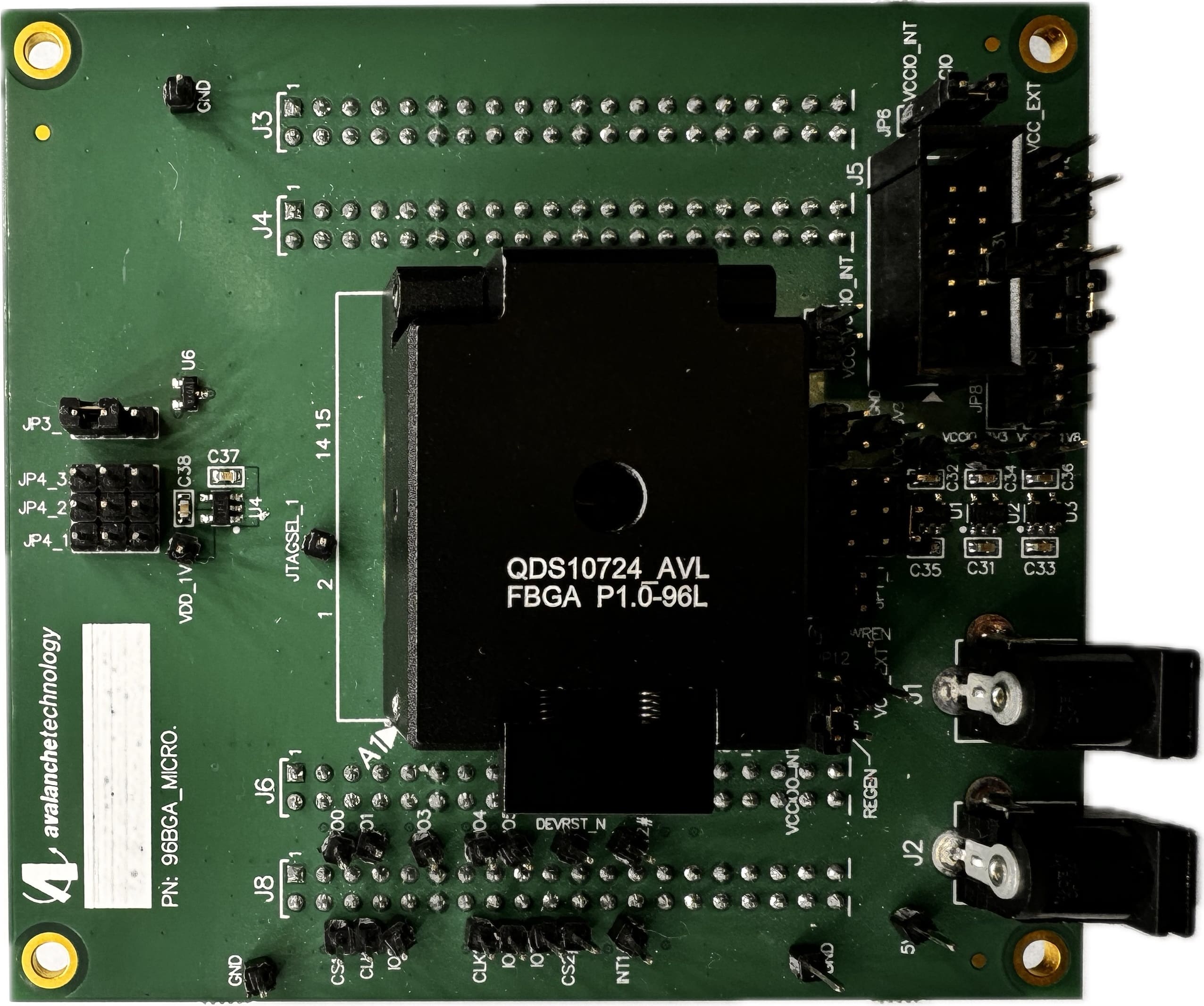

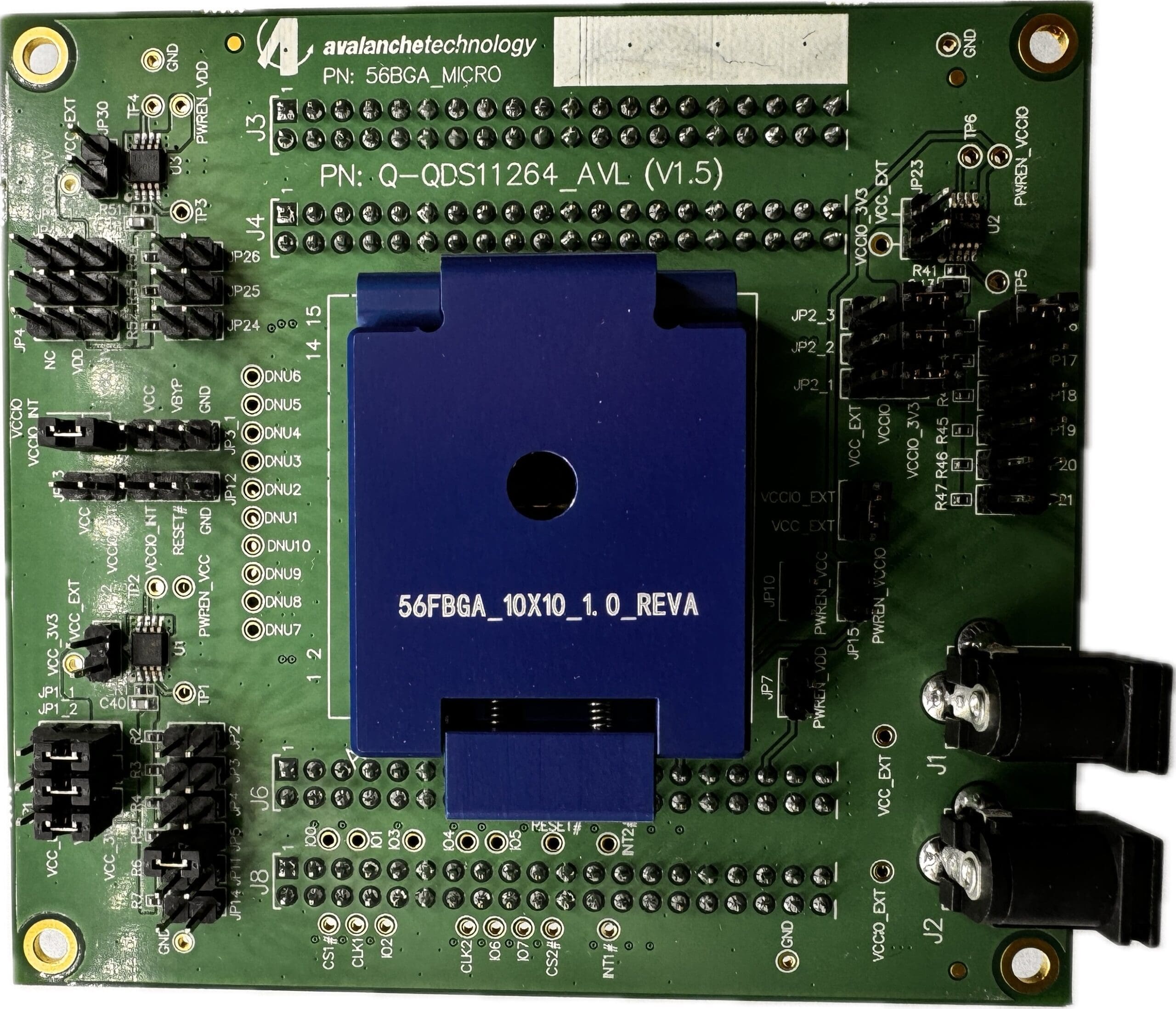

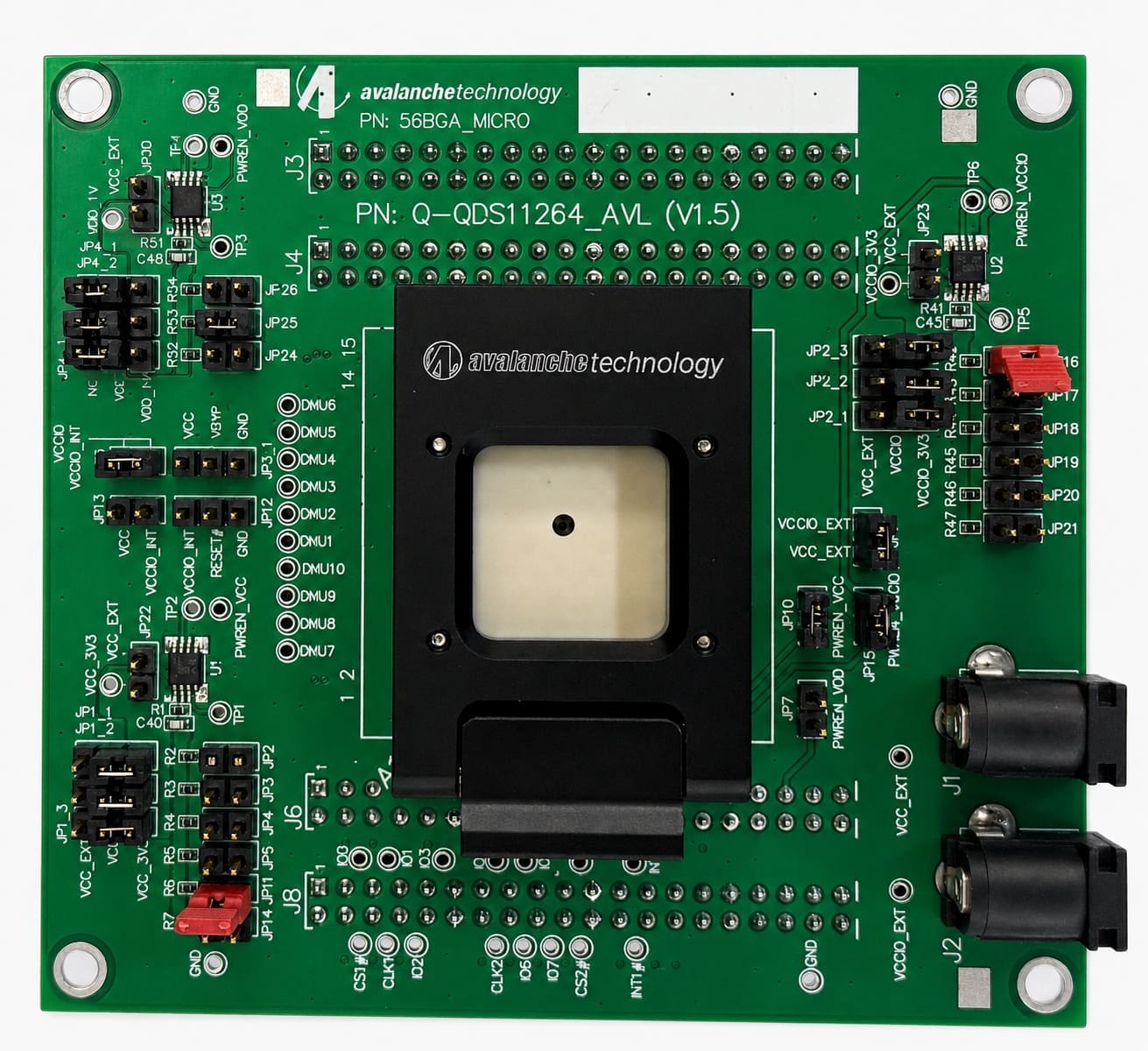

The Avalanche Gen 3 Space Grade Serial Dual QSPI P-SRAM™ evaluation kit enables the users to evaluate Avalanche’s Gen 3 Space Grade Persistent SRAM product with the Dual QSPI interface using a Lattice MACHXO3 FPGA breakout board connected to Avalanche daughterboard via a standard QSPI interface.

The Lattice MACHXO3 FPGA breakout board is controlled via a micro-USB Type B port with a host PC. This kit is socketed to enable density flexibility as all Gen 3 Dual QSPI devices are pin compatible. As a result, the P-SRAM devices are ordered separately, and both are available through our authorized Space Grade distributors.

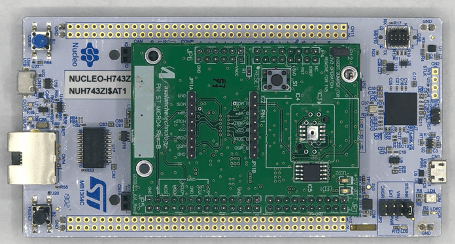

The Avalanche Gen 2 Industrial Grade Serial QSPI P-SRAM™ evaluation kit enables users to evaluate Avalanche’s Industrial Grade Persistent SRAM product using a STMicro Nucleo motherboard connected to an Avalanche daughter card via a standard Asynchronous SRAM interface. The Avalanche daughter card is populated with an AS3016204-108.

The STMicro Nucleo motherboard communicates with the computer using a USB 2.0 cable type A/B and terminal emulator software, using Avalanche’s proprietary software application. This evaluation kit is designed to work with the STMicro NUCLEO-H743ZI2 with UNO R3 compatible header. The kit includes both the STMicro NUCLEO-H743ZI2 board as well as the Avalanche AS3016204-108xx daughter card.

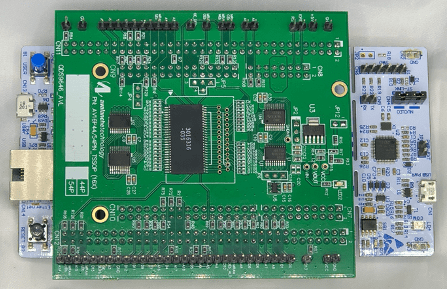

The Avalanche parallel interface P-SRAM™ evaluation kit enables users to evaluate Avalanche’s P-SRAM parallel interface product using a STMicro Nucleo motherboard connected to Avalanche’s daughter card via a standard Asynchronous SRAM interface. The Avalanche parallel interface P-SRAM daughter card is populated with a AS3016316-035nX0I device. The STMicro Nucleo motherboard communicates with the computer using two USB 2.0 cables type A/B and terminal emulator software, using Avalanche’s proprietary software application. This evaluation kit is designed to work with the STMicro NUCLEO-F746ZG with UNO R3 compatible header. The evaluation kit includes both the STMicro NUCLEO-F746ZG motherboard and the Avalanche parallel interface P-SRAM daughter card.

The STMicro Nucleo motherboard communicates with the computer using a USB 2.0 cable type A/B and terminal emulator software, using Avalanche’s proprietary software application. This evaluation kit is designed to work with the STMicro NUCLEO-H743ZI2 with UNO R3 compatible header. The kit includes both the STMicro NUCLEO-H743ZI2 board as well as the Avalanche AS3016204-108xx daughter card.

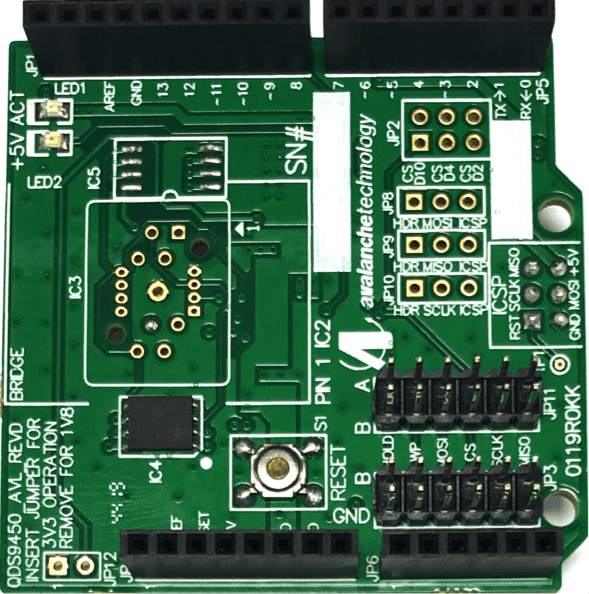

The Avalanche P-SRAM evaluation board is designed as an easy-to-use, flexible, and low-cost development kit for evaluation of Avalanche Serial P-SRAM products.

The Avalanche P-SRAM evaluation board populated with a P-SRAM device can be connected to an Arduino UNO R3 or other host boards with compatible UNO R3 headers. Avalanche software bundled APIs and test program provide basic access to functionality of the Avalanche P-SRAM device.
